Ethernet Switch
Abaco Systems
Antaira
BotBlox
Cisco
Curtiss-Wright
Diamond Systems
Kontron
MILTECH
Moxa
OnTime Networks
Siemens
4
5
8
9
10
12
16
20
28
52
1G/10G
10/100/1000
10/100
1.75
5.08
6.0
6.378
17.3228
27.9528
51.5748
3.55
3.6
4.30
17.5
19.685
33.8583
52.3622
64.9606
3.775
5.00
5.3
14.0
21.6535
58.2677
85.4331
96.0630
105.9055
0.0441
0.21875
0.5071
2.8
3.0865
3.75
4.4092
5.5116
4W
5W
5.4W
7W
35W
36.7W
-50°C to +110°C
-40°C to +75°C
-40 to +85C
-40°C to +71°C
-40°C to +85°C
-40°C to +105°C
-20°C to +50°C
+5V to +36V DC
5-60 VDC
+7 to +40V DC
9.6V to 60V DC
12V-48V
12-48 VDC
24 VDC (18-32 VDC)
24 VDC / 88-300 VDC
+28 VDC
52-57 VDC
MIL-STD-1275/704
M12
MIL-DTL-38999
Other
RJ45
RJ45/Fiber
RJ45/MIL Circular
RJ45/SFP
RJ45/SFP+
Bare Board
Compact
DIN Rail
Embedded
Enclosed
PC/104
Rack
Sealed
Standalone
Managed
Managed L2
Managed L2/L3
Managed L2/L3+
Managed L2+
Unmanaged
Active
Inactive
Germany
Taiwan
USA
| Product | Manufacturer | Port Count | Port Speed | Height | Width | Depth | Weight | Power | Operating Temperature | Input Voltage | Connector Type | Mounting Type | Management | Production Status | Country Of Origin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

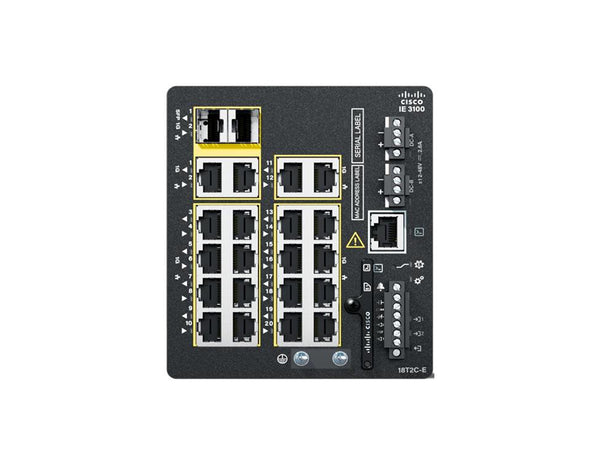

 Catalyst IE-3100-18T2C-E | Cisco | 20 | 10/100/1000 | 5.08 | 4.30 | 5.00 | 2.8 | 36.7W | -40°C to +75°C | 12V-48V | RJ45/SFP | DIN Rail | Managed | Active | USA |

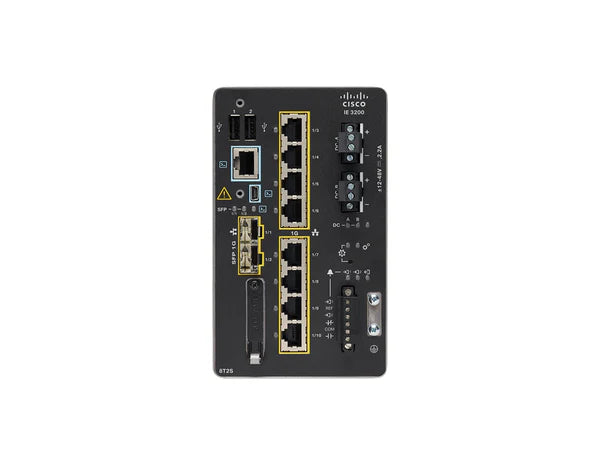

 Catalyst IE-3200-8P2S-E | Cisco | 10 | 10/100/1000 | 6.0 | 3.6 | 5.3 | 3.75 | 35W | -40°C to +75°C | 9.6V to 60V DC | RJ45/SFP | DIN Rail | Managed | Active | USA |
 EPS-8130 | Diamond Systems | 8 | 10/100/1000 | - | 3.55 | 3.775 | 0.21875 | 5.4W | -40 to +85C | +5V to +36V DC | Other | PC/104 | Managed | Active | USA |
 GigaBlox Rugged | BotBlox | 4 | 10/100/1000 | 6.378 | 19.685 | 21.6535 | 0.0441 | 4W | -50°C to +110°C | 5-60 VDC | Other | Bare Board | Unmanaged | - | USA |
 IE-5000-12S12P-10G | Cisco | 20 | 1G/10G | 1.75 | 17.5 | 14.0 | - | - | -40°C to +75°C | - | RJ45/SFP+ | Rack | Managed | Inactive | USA |
 Kontron AIRES | Kontron | 16 | 10/100/1000 | 17.3228 | 64.9606 | 85.4331 | - | - | -40°C to +71°C | +28 VDC | RJ45/MIL Circular | Compact | Managed L2/L3 | - | Germany |
 LNX-0800-M12-67 | Antaira | 8 | 10/100 | - | - | - | - | - | -40°C to +75°C | 12-48 VDC | M12 | DIN Rail | Unmanaged | - | Taiwan |
 MILTECH 910-PoE | MILTECH | 8 | 10/100/1000 | 27.9528 | 52.3622 | 105.9055 | - | 7W | - | 24 VDC (18-32 VDC) | RJ45 | Compact | Managed L2/L3 | Active | USA |
| Moxa | 16 | 10/100 | - | - | - | - | - | -40°C to +75°C | - | RJ45 | DIN Rail | Unmanaged | - | Taiwan | |
| OnTime CM-6900 | OnTime Networks | 52 | 1G/10G | - | - | - | - | - | -40°C to +71°C | - | RJ45/Fiber | Rack | Managed L2/L3 | - | USA |
| Parvus DuraNET 20-11 | Curtiss-Wright | 8 | 10/100/1000 | - | - | - | 0.5071 | 5W | -40°C to +85°C | MIL-STD-1275/704 | MIL-DTL-38999 | Sealed | Managed L2+ | - | USA |
 RES-210 | Abaco Systems | 10 | 10/100/1000 | - | - | - | 4.4092 | - | -40°C to +71°C | - | RJ45 | Enclosed | Managed L2/L3 | - | USA |
 RES2404-PTP | Kontron | 28 | 1G/10G | - | - | - | - | - | -20°C to +50°C | - | RJ45/SFP+ | Rack | Managed L2/L3 | - | Germany |
 RES3120 | Abaco Systems | 12 | 10/100/1000 | 51.5748 | 33.8583 | 58.2677 | 3.0865 | - | - | - | RJ45 | Standalone | Managed L2/L3+ | - | USA |
| RES3244 | Abaco Systems | 28 | 1G/10G | 51.5748 | 33.8583 | 96.0630 | 5.5116 | - | - | - | RJ45/SFP+ | Standalone | Managed L2/L3+ | - | USA |
| RUGGEDCOM RS900 | Siemens | 9 | 10/100 | - | - | - | - | - | -40°C to +85°C | 24 VDC / 88-300 VDC | RJ45/Fiber | DIN Rail | Managed L2 | - | Germany |
| RUGGEDCOM RST916P | Siemens | 16 | 1G/10G | - | - | - | - | - | -40°C to +85°C | 52-57 VDC | RJ45/SFP+ | Compact | Managed L2 | - | Germany |
 SABRENET-24000 | Diamond Systems | 28 | 1G/10G | - | - | - | - | - | -40°C to +85°C | +7 to +40V DC | RJ45/SFP+ | Compact | Managed L2/L3 | Active | USA |

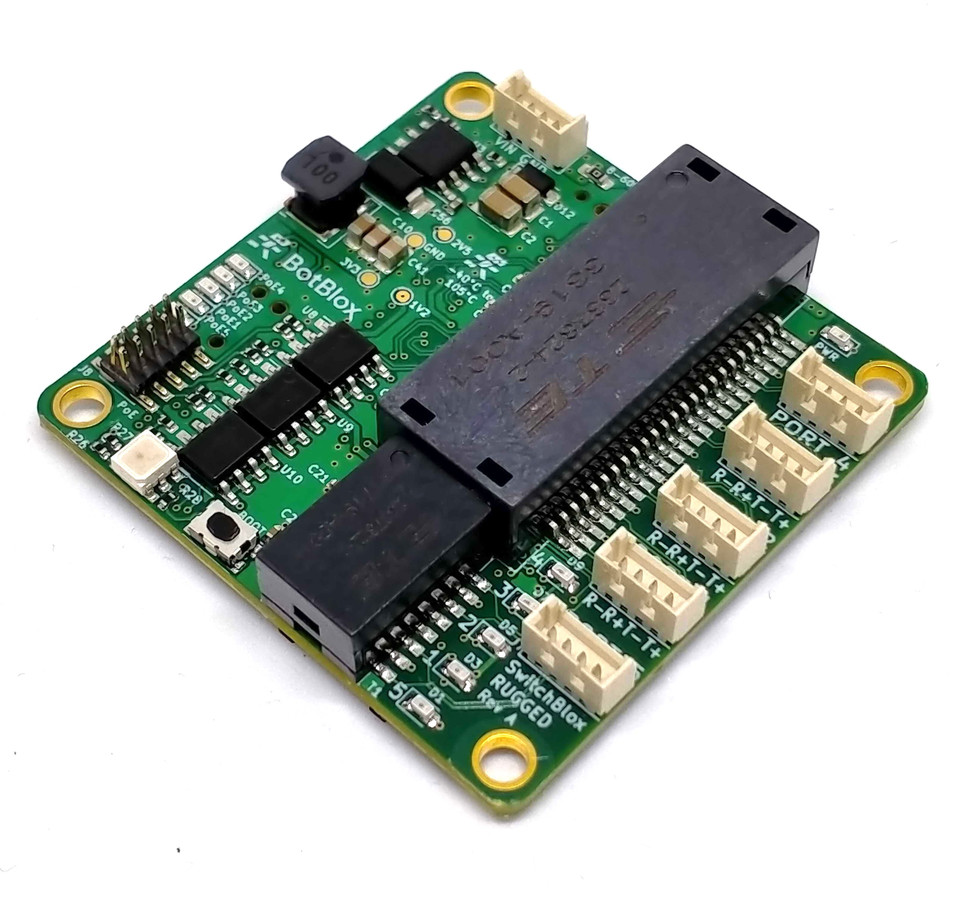

 SwitchBlox Rugged | BotBlox | 5 | 10/100 | - | - | - | - | - | -40°C to +105°C | 5-60 VDC | RJ45 | Embedded | Unmanaged | - | USA |
